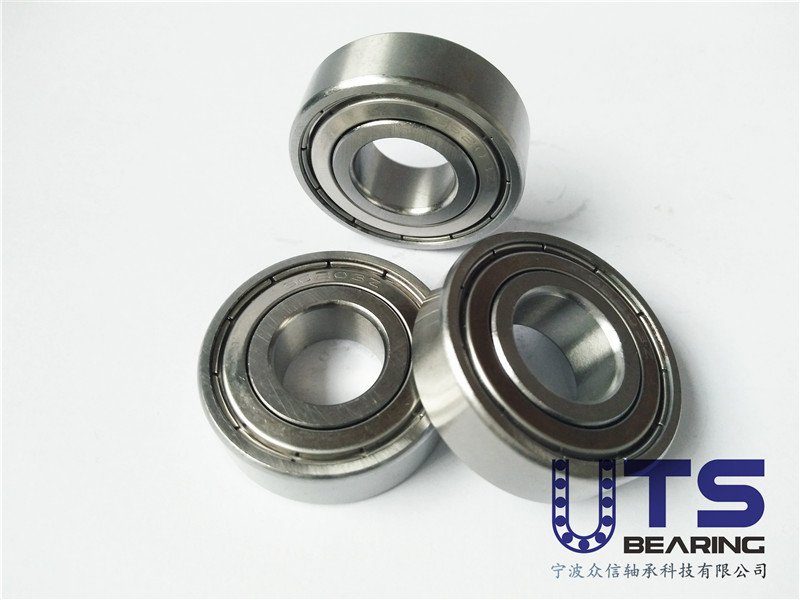

寧波眾信軸承科技有限公司專業生產S1622軸承S1622英制軸承軸承,我公司有現貨銷售.需要S1622軸承S1622英制軸承軸承的圖紙、結構、報價及配合安裝尺寸等資料請聯系我司銷售人員!
公司還為您推薦以下熱門型號：LR5007KDDU軸承 LR5007NPPU導軌滾輪軸承, LFR50/8-8KDD導軌滾輪軸承, DAC27530043汽車輪轂軸承, SMF72zz軸承SMF72zz法蘭軸承, NATV12/PP滾輪軸承NATV12/PP軸承, LFR5201-10, LFR5201-10KDD導軌滾輪軸承, SMR95zz不銹鋼軸承, SR2-6zz不銹鋼軸承, SR1-4zz軸承, S693zz軸承S693zz微型不銹鋼, 6000-2RZ 6000-2RS, NATR50-PP軸承-NATR-50滾輪軸承, DAC36680033, NATR50-PP軸承-NATR-50滾輪軸承, LV202-38, LV202-41, S63800-2RS軸承63800ZZ軸承, NUTR30 72X滾輪軸承, S1603軸承S1603英制軸承,
|
| |
| 軸承類型： |
S1622zz不銹鋼軸承 |
| 國內型號： |
S1622軸承S1622英制軸承 |
| 內徑d(mm)： |
14.288 |
| 外徑D(mm)： |
34.925 |
| 寬度C(mm)： |
11.113 |
| 寬度B(mm)： |
11.113 |
| 產品特性： |
防銹軸承 |
| 軸承材料： |
AISI440C |
|
|
軸承型號
|
內 徑d
|
外 徑D
|
寬 度B
|
倒 角r
|
動負荷
|
靜負荷
|
鋼球顆粒*直徑
|
|
毫米 英寸
|
毫米 英寸
|
毫米 英寸
|
毫米 英寸
|
C
|
C0
|
|
S1601
|
4.763 .1875
|
17.463 .6875
|
★6.350 .2500
|
0.3 .012
|
1.511
|
0.724
|
6
|
3.969
|
|
S1602
|
6.350 .2500
|
17.463 .6875
|
★6.350 .2500
|
0.3 .012
|
1.511
|
0.724
|
9
|
2.831
|
|
S1603
|
7.938 .3125
|
22.225 .8750
|
△7.144 .2812
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1604
|
9.525 .3750
|
22.225 .8750
|
△7.144 .2812
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1605
|
7.938 .3125
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1606
|
9.525 .3750
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1607
|
11.113 .4375
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
3.556
|
1.938
|
7
|
3.969
|
|
S1614
|
9.525 .3750
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1615
|
11.113 .4375
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1616
|
12.700 .5000
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1620
|
11.113 .4375
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1621
|
12.700 .5000
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1622
|
14.288 .5625
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1623
|
15.875 .6250
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1628
|
15.875 .6250
|
41.2751.6250
|
12.700 .5000
|
0.6 .024
|
7.232
|
4.45
|
9
|
6.35
|
|
S1630
|
19.050 .7500
|
41.2751.6250
|
12.700 .5000
|
0.6 .024
|
7.232
|
4.45
|
9
|
6.35
|
|
S1633
|
15.875 .6250
|
44.4501.7500
|
12.700 .5000
|
1.0 .039
|
7.232
|
4.45
|
9
|
6.35
|
|
S1635
|
19.050 .7500
|
44.4501.7500
|
12.700 .5000
|
1.0 .039
|
7.232
|
4.45
|
9
|
6.35
|
|
| |
| |
